Key Features

Dimension
36.5×23.7×5mm
Weight
6.5g
Materials
ABS
Bluetooth protocol
Bluetooth® LE 5.0
Battery
CR series button battery, 230mAh, 1 year
Transmission range
60m

Specifications

<body> <p>This page uses frames, but your browser doesn't support them.</p> </body>

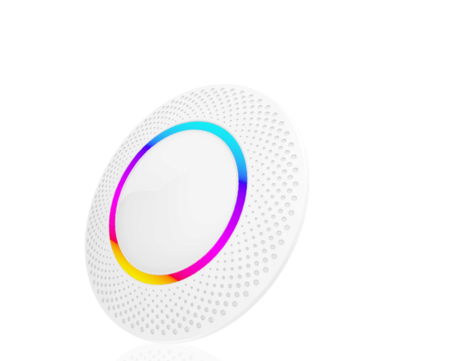

DR-BLEGW1 is a faster and safer gateway with powerful Bluetooth® LE & Wi-Fi CPU and WPA 2.0 enterprise encryption for data security and transmission, G1 collects data from Bluetooth® LE Beacon, sensor and other IoT devices, and then sends it to the cloud over Wi-Fi / Ethernet. It’s a great option for all industry applications.

Specifications

  • Super Speedy WiFi CPU & Bluetooth 5.0 Chipset
  • Max. 300-meter Transmission Range
  • Up to 300Mbps WiFi Data Rate
  • Support AWS/Azure/Google IoT Cloud Platforms
  • Bluetooth® LE

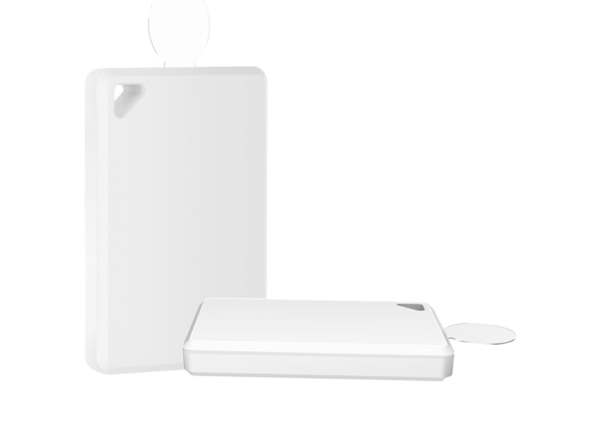

DR-BLENE8 is a portable asset tag with Bluetooth 5.0 tech and up to 60m broadcasting transmission range and is primarily used for asset and inventory tracking in different industries. Moreover, an accelerometer sensor is available if users need them.

Color
White
Size
150x150x36mm
Net Weight
155g
Accessory
1 USB Cable, metal fixing and screws
Power Supply
DC 5.0 (+/- 5%) Max. 5.5 Volts
Storage  temp
-40℃ to 85℃
Humidity
Max 95%, non-condensing, relative humidity
WiFi RF Performance

WiFi Protocols
IEEE 802.11 b/g/n
WiFi Frequencies
2.4-2.4835GHz
Emitting Power
17dBm (typical)@ 802.11b
11.3dBm (typical)@ 802.11g
8.2dBm (typical)@ 802.11n
Data Transfer Speed
802.11n: Up to 300Mbps
802.11g: Up to 54Mbps
802.11n: Up to 11Mbps
Transfer Speed
2T2R 300Mbps
Minimum receive input level
-87dBm(typ. with PER < 8%@11Mbps)
-70dBm(typ. with PER < 10%@54Mbps)           -70dBm(typ. with PER < 10%@MCS7)
Receiving Sensitivity
270M:-61dBm@10%PER 135M:-65dBm@10%PER 108M:-68dBm@10%PER 54M:-68dBm@10%PER 11M:-85dBm@10%PER 6M:-88dBm@10%PER 1M:-61dBm@10%PER
Modulate Mode
DBPSK, DQPSK, CCK and OFDM ( BPSK/QPSK/16-QAM/64-QAM)
Network Protocol
HTTP(SSL/ TLS) /
MQTT(SSL / TLS & Proxy) / TCP
Wireless Encryption
WPA-PSK / WPA2-PSK, WPA-EAP /WPA2-EAP and TKIP
